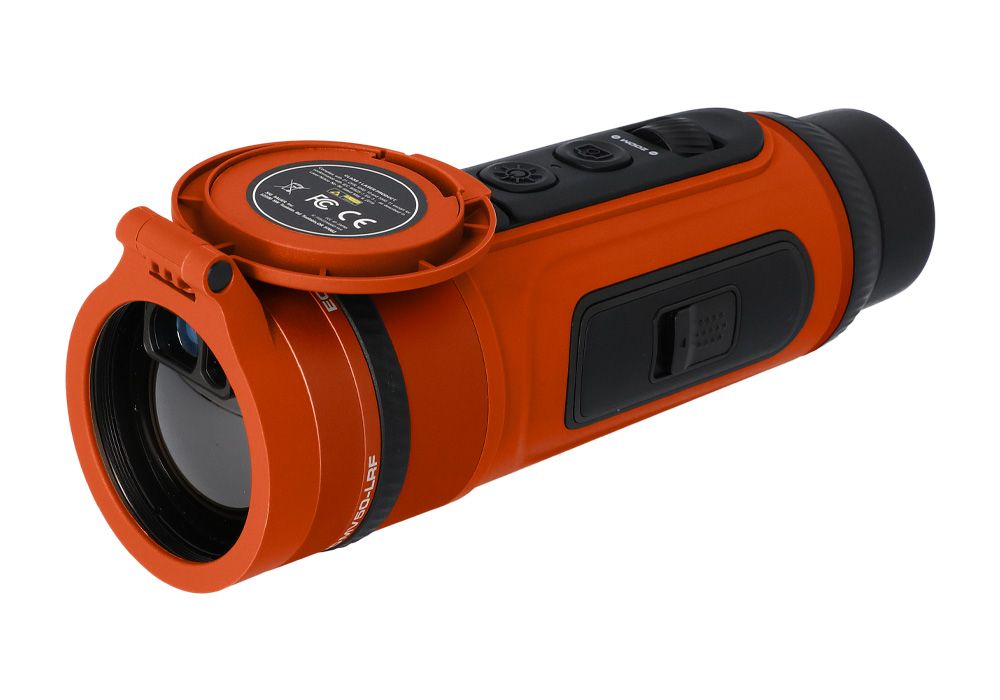

Introducing the new ECHO MV50-LRF MARINE, a 3-24x50mm thermal rangefinding monocular purpose-built to extend visibility and awareness on the water, day or night.
Powered by a high-performance 640x512, 12µm thermal sensor with <20mK sensitivity, the ECHO MV50-LRF MARINE delivers exceptional thermal detail to help identify vessels, navigational hazards, wildlife, and other heat signatures when darkness, distance, or challenging conditions limit the naked eye. Eight selectable thermal palettes allow users to optimize the image for changing environments, while the integrated LIGHTWAVE™ DSP GEN II 1,000-yard laser rangefinder provides fast, precise distance information without the need for a separate device.
With 3-24X magnification, still photo and video recording with audio, and up to 10 hours of runtime, the ECHO MV50-LRF MARINE delivers the versatility required for long days on the water and after-dark navigation. An internal battery combined with a replaceable external 18500 battery provides flexible power management, while IP67 waterproof construction ensures dependable performance in demanding marine environments.
Whether navigating back to the dock after sunset, scanning open water, locating wildlife, or identifying potential hazards beyond the reach of traditional optics, the ECHO MV50-LRF MARINE delivers advanced thermal capability built for life on the water.
FEATURES:
- 3-24x50mm thermal rangefinding monocular
- 640x512 VGA, 12µm, 50Hz thermal core
- <20mK thermal sensitivity
- Integrated LIGHTWAVE™ DSP GEN II 1,000-yard laser rangefinder
- 8 selectable thermal palettes
- Still photo and video recording with audio
- BDX 2.0 enabled
- Applied ballistics ultralight
- 10-hour runtime
- Internal and replaceable external 18500 battery
- IP67 waterproof
- Fully backed by SIG SAUER’s Infinite Guarantee™
Specifications
| SKU | SOEC42310OR |
|---|---|
| Magnification | 3-24 |
| Field of View | 8.7 |
| Frame Rate | 50 Hz |
| Resolution | 640 X 512 |
| Color Palettes | 8 |
| Video Recording | Yes |
| BDX Enabled | Yes |
| Run Time | 10 HOURS |
| Battery | Internal and 18500 Replaceable External |
| Overall Length | 7.6 in |
| Weight | 19.8 oz W/O Battery |
| Waterproofing | IP67 |
| Color | Orange |
Infinite Guarantee
SIG SAUER Electro-Optics are guaranteed forever. It's an unlimited lifetime guarantee.
LensArmor™
Abrasion-resistant lens coatings for extreme durability ensure the lenses on your scope will stay sharp, bright, and clear.
LightWave DSP™
Lightwave DSP (Digital Signal Processing) engine leverages HyperScan– an advanced power management technique that provides the fastest refresh rate in scan mode (4 times per second) even at distances over a mile. Our DSP engine uses the latest generation Field Programmable Gate Array (FPGA) running sophisticated signal processing algorithms to reduce false positives while finding weak or distant targets.
Ballistic Data Exchange 2.0
Ballistic Data Exchange is a rangefinder and riflescope system that uses your ballistics, environmental conditions and Bluetooth to illuminate the exact holdover dot. BDX 2.0 is the Software Update that includes a new easy mode for quick BDX setup out of the box, including: BDX kits come paired and bonded. BDX Quickbond™ system gives users the ability to bond two BDX enabled devices without the smartphone app. BDX equipped KILO™ rangefinders preloaded with ballistic groups for centerfire rifles, muzzleloaders and crossbows. 100% compatible with BDX smartphone app to access the advanced BDX features in configuration options.
Hyperscan™
Features the fastest, most accurate range acquisition algorithms by analyzing targets 4 times per second and displaying the results on stationary or moving targets within a quarter of a second.
Bluetooth
Establish a wireless connection between your compatible SIG SAUER optic device and smartphones or Kestrels to maximize the functionality and capabilities of your optic. Manipulate device setting, load new ballistic profiles, and transfer data quickly and easily with the BDX 2.0 mobile app
Applied Ballistics
- ECHO THERMAL MONOCULAR OWNER'S MANUAL
