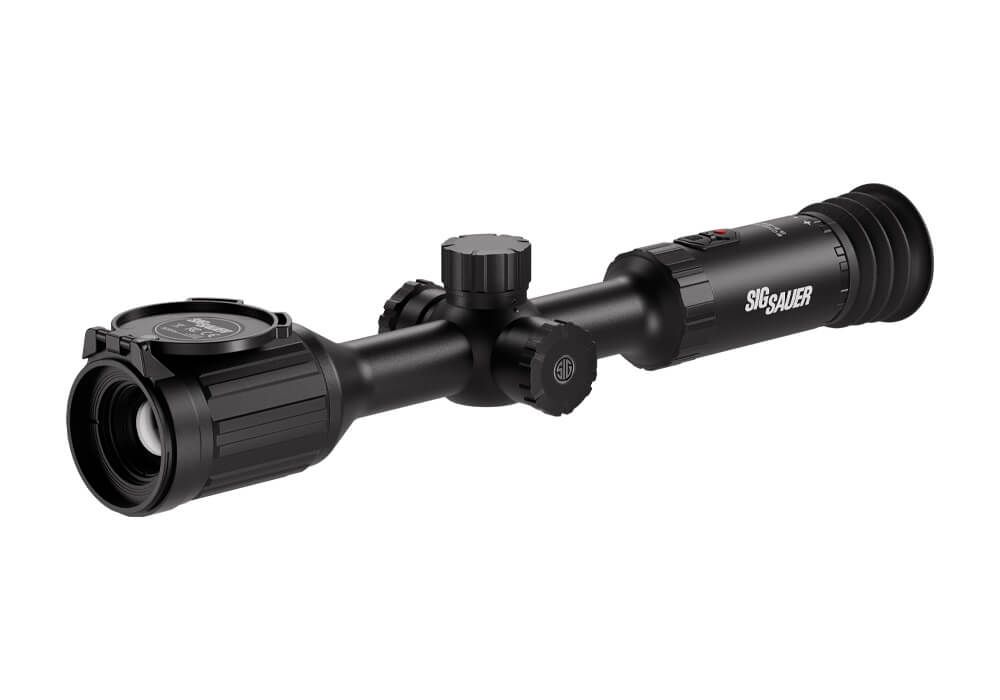

The ECHO® RQ35 thermal riflescope delivers dependable thermal performance in a compact, efficient configuration designed for practical engagement distances. Featuring a 35mm objective lens and a responsive thermal core, the RQ35 expands your awareness with crisp heat separation—enabling fast detection and confident target differentiation in close-to-mid range environments. Purpose-built for balance and maneuverability, it’s an ideal entry point into the ECHO R lineup.
FEATURES:
- LWIR 12um 50Hz thermal core with less than 20mK sensitivity
- 35mm Objective lens – Optimized for fast detection and wide situational awareness
- Efficient thermal resolution (384x288) – Clear heat contrast for confident identification
- Compact, balanced form factor – Maintains natural rifle handling and reduced fatigue
- BDX 2.0 enabled – Record, stream, and configure settings via the BDX mobile app
- 12-hour runtime – Internal battery with replaceable 18500 external battery support
Specifications
| SKU | SOEC31200 |
|---|---|
| Height | 3.5 in [ 89 mm ] |
| Magnification | 3.5-28 |
| Maintube Diameter | 30mm |
| Field of View | 7.6º |
| Frame Rate | 50 Hz |
| Resolution | 384 X 288 |
| Color Palettes | 8 |
| Video Recording | Yes |
| BDX Enabled | Yes |
| Run Time | 12 Hours |
| Battery | Internal + 1x18500 |
| Overall Length | 14.8 in [375 mm] |
| Overall Width | 2.8 in [72 mm] |
| Weight | 31.7 oz [900 g] |
| Waterproofing | IP67 |
| Color | Black |
Technology
Infinite Guarantee
SIG SAUER Electro-Optics are guaranteed forever. It's an unlimited lifetime guarantee.
LensArmor™
Abrasion-resistant lens coatings for extreme durability ensure the lenses on your scope will stay sharp, bright, and clear.
Ballistic Data Exchange 2.0
Ballistic Data Exchange is a rangefinder and riflescope system that uses your ballistics, environmental conditions and Bluetooth to illuminate the exact holdover dot. BDX 2.0 is the Software Update that includes a new easy mode for quick BDX setup out of the box, including: BDX kits come paired and bonded. BDX Quickbond™ system gives users the ability to bond two BDX enabled devices without the smartphone app. BDX equipped KILO™ rangefinders preloaded with ballistic groups for centerfire rifles, muzzleloaders and crossbows. 100% compatible with BDX smartphone app to access the advanced BDX features in configuration options.Resources
- ECHO R THERMAL RIFLESCOPES OWNER'S MANUAL
