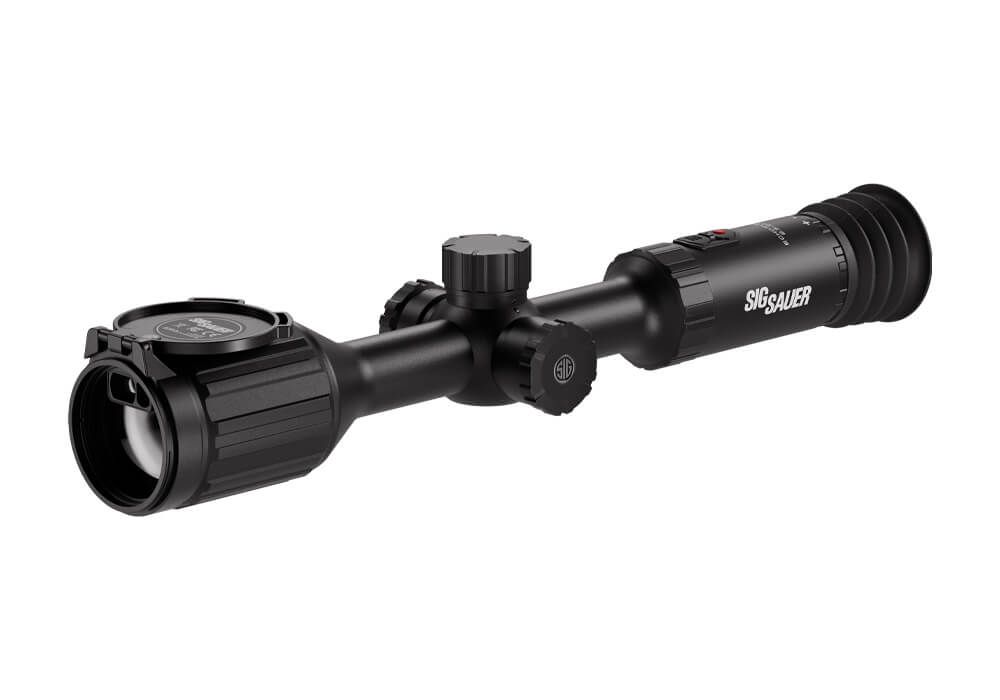

Made for thermal superiority, the ECHO® RV50-LRF thermal riflescope delivers the most advanced capability in the ECHO R lineup. Featuring a larger 50mm objective lens and an integrated 1000-yard laser rangefinder, the RV50-LRF provides superior detection, refined identification, and real-time ranging data. Paired with BDX 2.0 and Applied Ballistics Ultralight, it delivers tailored shoot-to solutions that eliminate guesswork and empower confident long-range engagements—day or night.
FEATURES:
- LWIR 12um 50Hz thermal core with less than 20mK sensitivity
- 50mm Objective lens – Maximizes detection and identification at extended distances
- Integrated 1000y laser rangefinder – Precise distance data when it matters most
- Applied Ballistics ultralight – Delivers accurate range and holdover solutions
- BDX 2.0 enabled – Full system connectivity with live video streaming and recording
- Built for precision applications – Ideal for predator management and long-range shooting
- 12-hour runtime – Designed for extended hunts and overnight use
Specifications
| SKU | SOEC32310 |
|---|---|
| Height | 3.5 in [ 89 mm ] |
| Magnification | 2.5-20 |
| Maintube Diameter | 30mm |
| Field of View | 8.8º |
| Frame Rate | 50 Hz |
| Resolution | 640 X 512 |
| Color Palettes | 8 |
| Video Recording | Yes |
| BDX Enabled | Yes |
| Run Time | 12 Hours |
| Battery | Internal + 1x18500 |
| Overall Length | 15.0in [ 380 mm ] |
| Overall Width | 2.8 in [ 72 mm ] |
| Weight | 34.9 oz [ 990 g ] |
| Waterproofing | IP67 |
| Color | Black |
Technology
Infinite Guarantee
SIG SAUER Electro-Optics are guaranteed forever. It's an unlimited lifetime guarantee.
LensArmor™
Abrasion-resistant lens coatings for extreme durability ensure the lenses on your scope will stay sharp, bright, and clear.
LightWave DSP™
Lightwave DSP (Digital Signal Processing) engine leverages HyperScan– an advanced power management technique that provides the fastest refresh rate in scan mode (4 times per second) even at distances over a mile. Our DSP engine uses the latest generation Field Programmable Gate Array (FPGA) running sophisticated signal processing algorithms to reduce false positives while finding weak or distant targets.
Ballistic Data Exchange 2.0
Ballistic Data Exchange is a rangefinder and riflescope system that uses your ballistics, environmental conditions and Bluetooth to illuminate the exact holdover dot. BDX 2.0 is the Software Update that includes a new easy mode for quick BDX setup out of the box, including: BDX kits come paired and bonded. BDX Quickbond™ system gives users the ability to bond two BDX enabled devices without the smartphone app. BDX equipped KILO™ rangefinders preloaded with ballistic groups for centerfire rifles, muzzleloaders and crossbows. 100% compatible with BDX smartphone app to access the advanced BDX features in configuration options.
Angled Modified Range™
Angled Modified Range technology uses an onboard inclinometer that reads the incline/decline angle and modifies the effective ballistic shooting range to the target. AMR is the equivalent horizontal range and integrates perfectly when used in combination with SIG Ballistic Turret Dials.
KinETHIC™ Kinetic Energy Indicator
Allows a hunter to set a threshold in either ft-lbs or fps for the ethical harvest of game animals. BDX will compute distance ranged and indicate when you drop below the user-set threshold for energy or speed of bullet on target.
Hyperscan™
Features the fastest, most accurate range acquisition algorithms by analyzing targets 4 times per second and displaying the results on stationary or moving targets within a quarter of a second.
Applied Ballistics
Resources
- ECHO R THERMAL RIFLESCOPES OWNER'S MANUAL
