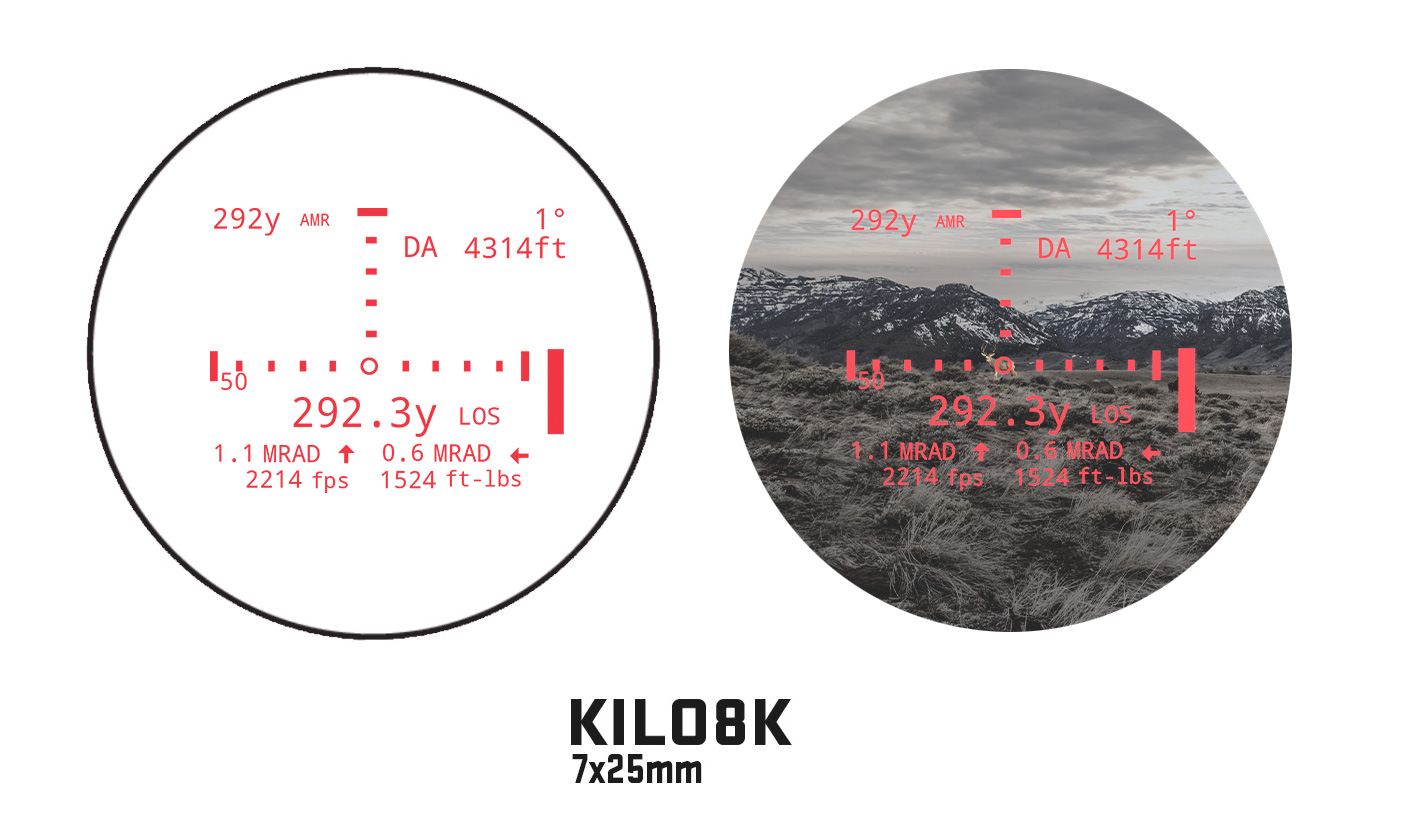

Introducing the new KILO8K-ABS 7 x 25 mm laser rangefinding monocular with BDX 2.0. The KILO8K-ABS has a maximum reflective range of 8,000 yards and includes Applied Ballistics Elite (BDX Elite) along with onboard environmental sensors and digital compass; the KILO8K also supports BDX External (BDX-X) for connecting to external devices such as Kestrel and Garmin devices. The Gen II LightWave DSP engine features new target modes: Extended Range (XR) and Fog mode along with First, Best and Last target. The rangefinder incorporates the first Active Matrix Organic Light Emitting Graphic Display which provides all relevant ballistic information such as range to target, elevation holdover, wind hold, energy on target and velocity at target distance. The all new KILO rangefinders also integrate with BaseMap to provide remote waypoints on ranged targets and can be fully configured with the Sig Sauer BDX App. All KILOs leverage Low Energy / Long Range Bluetooth 5.x for multipoint Bluetooth connections and improved connectivity to BDX enabled riflescopes and sights. The KILO8K ships with a Multicam MOLLE bag, Multicam carry pouch, lanyard, tripod adapter and WeatherFlow Bluetooth WindMETER.
FEATURES:
- Gen II Lightwave DSP Ranging Engine With Extended Range (XR) Mode
- Onboard Environmental Sensors for Real-time Ballistic Calculations
- Drop Remote Waypoints With Basemap App
- Applied Ballistics Elite With Complete AB Bullet Database, Up to 25 Custom Bullet Profiles and 8 Onboard Ballistic Groups
- BDX 2.0 Enabled With Low Energy, Long Range Bluetooth
Specifications
| SKU | SOK8K701 |
|---|---|
| Model | KILO8K |
| Color | Flat Dark Earth (FDE) |
| Height | 3.0 in |
| Magnification | 7x |
| Objective Lens Diameter | 25 mm |
| Overall Length | 4.4 in |
| Overall Width | 1.3 in |
| Battery | (1) CR2 |
| Display Type | 304 x 256 ACTIVE MATRIX OLED |
| Reticle | Circle, Duplex, Box + Milling Grid |
| Weight | 7.5 oz |
| Eye Relief | 16 mm |
| Field of View | 6.78º |
| Diopter Adjustment Range | +/- 3 |
| Run Time | 4000 ranges |
| Range on Deer | Up to 2000 y |
| Range on Trees | Up to 2500 y |
| Max Reflective | Up to 8000 y |
| Laser Divergence | 1.2 x 0.25 MRAD |
LensArmor™
Abrasion-resistant lens coatings for extreme durability ensure the lenses on your scope will stay sharp, bright, and clear.
LightWave DSP™
Lightwave DSP (Digital Signal Processing) engine leverages HyperScan– an advanced power management technique that provides the fastest refresh rate in scan mode (4 times per second) even at distances over a mile. Our DSP engine uses the latest generation Field Programmable Gate Array (FPGA) running sophisticated signal processing algorithms to reduce false positives while finding weak or distant targets.
Lumatic™
The most advanced display on the market. Our OLED (Organic Light Emitting Diode) display has the largest dynamic range providing for high brightness in bright sunlight or snow conditions, yet will dim down to near nightvision levels at dusk and dawn. No other display offers this adaptive ability to prevent your pupil from constricting in low-light causing you to no longer be able to see your target.
SpectraCoat™
Highly efficient, ultra-wide broadband, anti-reflection lens coatings reduce surface reflections to extremely low levels across the entire visible spectrum providing superior light transmission.
Ballistic Data Exchange 2.0
Ballistic Data Exchange is a rangefinder and riflescope system that uses your ballistics, environmental conditions and Bluetooth to illuminate the exact holdover dot. BDX 2.0 is the Software Update that includes a new easy mode for quick BDX setup out of the box, including: BDX kits come paired and bonded. BDX Quickbond™ system gives users the ability to bond two BDX enabled devices without the smartphone app. BDX equipped KILO™ rangefinders preloaded with ballistic groups for centerfire rifles, muzzleloaders and crossbows. 100% compatible with BDX smartphone app to access the advanced BDX features in configuration options.
Angled Modified Range™
Angled Modified Range technology uses an onboard inclinometer that reads the incline/decline angle and modifies the effective ballistic shooting range to the target. AMR is the equivalent horizontal range and integrates perfectly when used in combination with SIG Ballistic Turret Dials.
ONX
The OnX Hunt remote waypoint feature has been integrated into our BDX 2.0 App- KILO8K RANGEFINDER OWNER'S MANUAL
